G3 rifle compression springs data.
This info is
taken from the Norwegian army T.M. TH 9-1005-25/225-14 and
pertains to the
Norwegian version of the G3 rifle built under H&K license
(AG3).
|
Designation |
Thread
diameter |
Effective
coils |
Diameter |
Free
length |
Mounted
lenght |
Length
loaded |
Tension,
mounted |
Tension,
loaded |
|
Measure |
mm |
|
mm |
mm |
mm |
mm |
kg |
kg |
|
Sear
spring |
0.63 |
9 |
id 2.5 |
15 |
9.8 |
8.1 |
3.06 |
3.8 +0.5 |
|
Hammer
spring |
1.25 |
25 |
id 4.7 |
63 |
59 |
38 |
1.9 |
11.9±0.7 |
|
Ejector
spring |
0.4 |
14 |
id 3.8 |
22 |
14.9 |
9.1 |
0.34 |
0.62±0.005 |
|
Recoil
spring |
1.25 |
95 |
id 8.2 |
460 |
304 |
131 |
4.93
+0.0 -0.6 |
10.4
+1.4 -0.0 |
|
Buffer
spring |
3.0 |
7 |
id 8.6 |
39.5
+0.0 -1.0 |
36 |
27 |
21 |
86 |
|
Firing
pin spring |
1.4 |
10 |
id 7.2 |
40 |
32 |
29 |
5±0.5 |
6.6±0.7 |
|
Locking
lever spring |
1.4 |
4 |
od 8.0 |
16.2 |
8.2 |
7.3 |
20.0
+1.5 -1.0 |
23.5
+1.5 -1.0 |
|
Rear
sight spring |
0.5 |
6 |
od 2.8 |
8 |
5 |
4.35 |
2.35 |
2.85 |
|
Rear
sight drum springs |
0.5 |
3 |
od 3.4 |
4.7 |
3.6 |
2.8 |
0.975 |
1.68 |
|
Magazine
latch spring |
0.9 |
3.5 |
id 6.2 |
13 |
7.9 |
5.5 |
2.74 |
4
±0.4 |
|
Magazine
spring |
1.6 |
71/3 |
od 42x22
+0.0 -0.4 |
300 |
140 |
24 |
2.5
±0.4 |
4.5 |
H&K parts
numbers for above springs.
| |
Part. no. |
Ident. no. |
Q'ty per rifle |
|
Designation |
|
|
1 |
|
Sear
spring |
|
200493 |
1 |
|
Hammer
spring |
|
200498 |
1 |
|
Ejector
spring |
|
200478 |
1 |
|
Recoil
spring |
1013-04.08 |
200525 |
1 |
|
Buffer
spring |
|
200889 |
1 |
|
Firing
pin spring |
1013-02.05 |
200441 |
1 |
|
Locking
lever spring |
1013.02-16 |
200453 |
1 |
|
Rear
sight spring |
1013-101.09 |
200383 |
1 |
|
Rear
sight drum springs |
|
200388 |
2 |
|
Magazine
latch spring |
1013-01.25 |
200393 |
1 |
|
Magazine
spring |
|
|
1 per magazine |

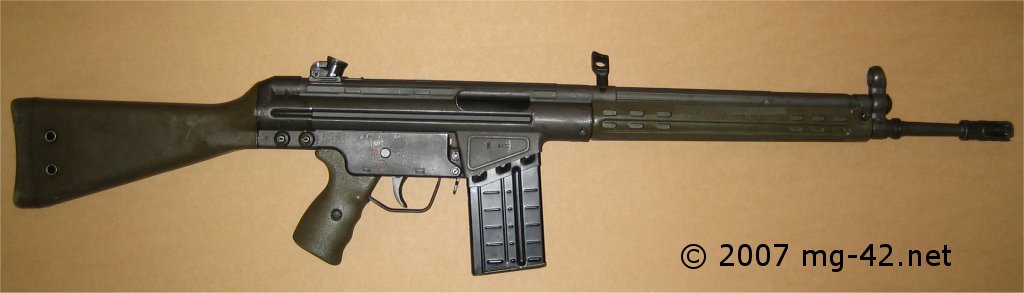

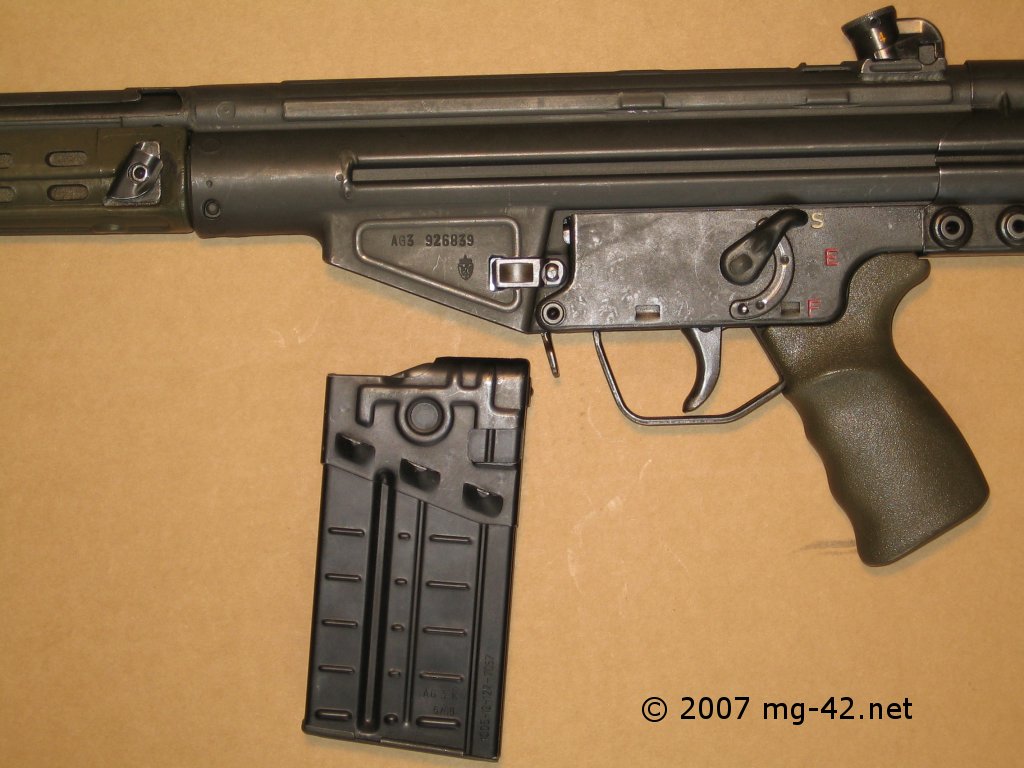

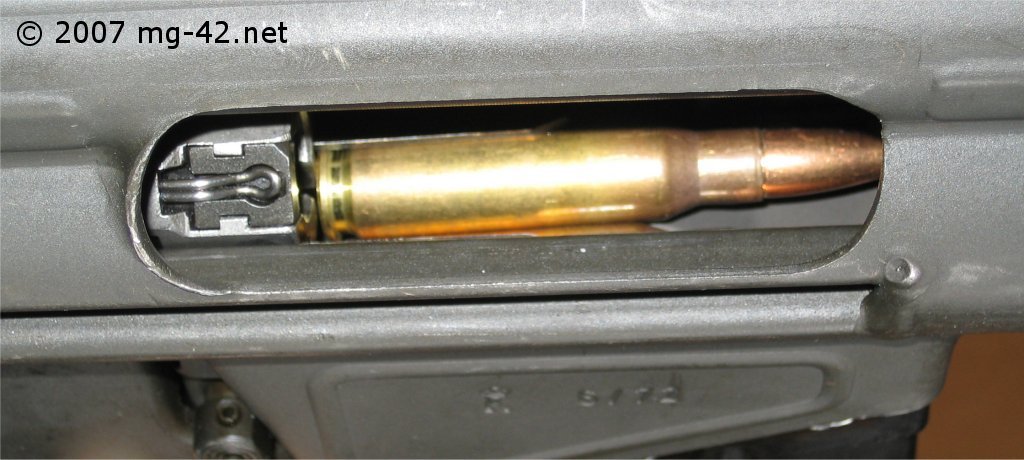

AG3 pics.
|
